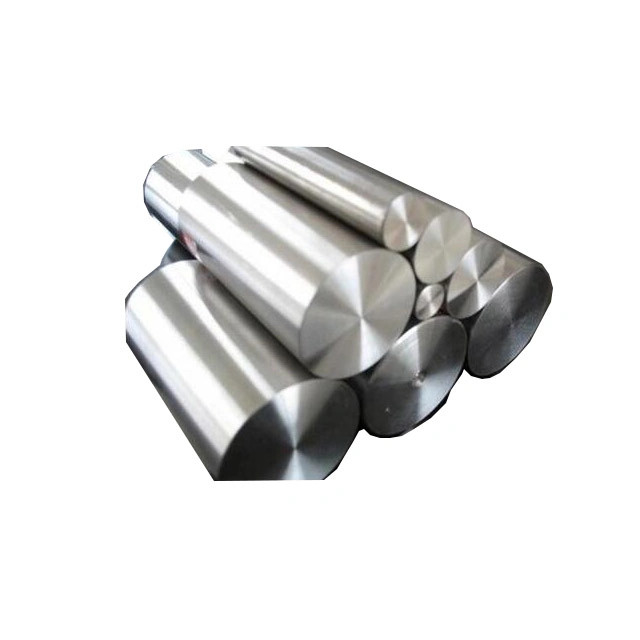

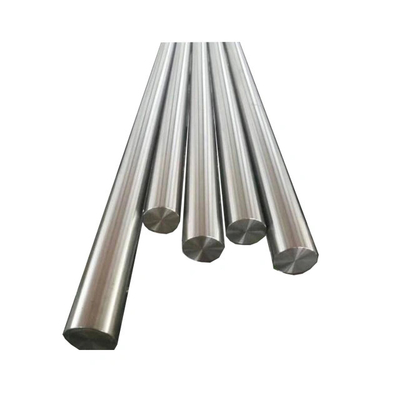

N02201 2.4061 Astm B472 Astm B564 Uns N10675 Uns N10665 Nickel Alloy Steel Round Bar
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | 201 N02201 2.4061 Astm B472 Uns N10675 Uns N10665 Nickel Alloy Steel Round Bar | Material: | Inconel , Hastelloy , Ti-Ni, Etc |
|---|---|---|---|
| Ni (Min): | 99.9% | Standard: | ASTM ASME SUS JIS DIN |
| Ultimate Strength (≥ MPa): | 550 | Usage: | Aerospace, Medical, Chemical |
| Certification: | ISO9001 TUV | Application: | Oil, Gas, Chemical |
| Length: | 0-12M Or Fixed Length/random Length | Processing: | Hot/Cold Rolling |
| Surface: | Black Or Bright Or Pickling White | Outside Diameter: | 2-914mm |
| High Light: | Astm B472 Uns N10675,astm b564 uns n10665,N02201 Nickel Alloy Round Bar |
||
Product Description
201 N02201 2.4061 Astm B472 Uns N10675 Uns N10665 Nickel Alloy Steel Round Bar
Alloy 201 Pipe Size Range and Specifications
| Grade | Nickel 201 |
| Standard | ASME SB-161, ASME SB-163, ASME SB-730, ASME SB-751 / BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754 |
| Nickel 201 Seamless Pipes | 1/4" NB To 6" NB |
| Nickel 201 Welded / ERW Pipes | 1" NB To 16" NB |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Length | Single Random, Double Random & Cut Length. |
| Type | Seamless / ERW / Welded / Fabricated / EFW |
| End | Plain End, Beveled End, Treaded |
Nickel 201 or Ni 201 is the low-carbon version of Nickel 200 . The Nickel 201 has the similar characteristics as the Nickel 200 Specifications
| Standard | Nickel 201 |
| UNS | N02201 |
| BS | NA 12 |
| AFNOR | - |
| GOST | НП-2 |
| WERKSTOFF NR. | 2.4068 |
| JIS | NW 2201 |
| EN | LC-Ni 99 |
2. ASTM B 163 Nickel 201 Seamless Tube Specifications
| STANDARDS | SEAMLESS | WELDED |
| ASTM | B 163 | B 730 |
| ASME | SB 163 | SB 730 |
| PIPE TYPE | NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
| ASTM B 163 Nickel 201 Seamless Tube | 1/8″ | Yes | Yes | Yes | Yes | |
| ASTM B 163 Nickel 201 Seamless Tube | 1/4″ | Yes | Yes | Yes | Yes | |
| ASTM B 163 Nickel 201 Seamless Tube | 3/8″ | Yes | Yes | Yes | Yes | |
| ASTM B 163 Nickel 201 Seamless Tube | 1/2″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 3/4″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 1″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 1 1/4″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 1 1/2″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 2″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 2 1/2″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 3″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 4″ | Yes | Yes | Yes | Yes | Yes |
| ASTM B 163 Nickel 201 Seamless Tube | 5″ | Yes | Yes | Yes | Yes | |
| ASTM B 163 Nickel 201 Seamless Tube | 6″ | Yes | Yes | Yes | Yes |
3. Mechanical & Physical Properties
| Density | 8.9 g/cm3 |
| Melting Point | 1446 °C (2635 °F) |
| Tensile Strength | Psi – 67000 , MPa – 462 |
| Yield Strength (0.2%Offset) | Psi – 21500 , MPa – 148 |
| Elongation | 45 % |
Chemical Composition
| NICKEL 201 | |
| Ni | 99.0 min |
| Fe | 0.4 max |
| C | 0.02 max |
| Mn | 0.35 max |
| Si | 0.2 max |
| Cu | 0.25 max |
| Mg | 0.15 max |
| Ti | 0.1 max |
| S | 0.01 max |
Application of Nickel 201 Seamless Pipe
- Heat exchangers
- Distillation columns
- Reactors and vessels
- Piping systems
- Instrumentation tubing
- Chemical processing equipment
- Petrochemical processing equipment
4. Nickel 201 Nickel Alloy Seamless Pipe Tube Packaging
Nickel 201 Seamless Pipe may be furnished bare or coated and with capped ends. pipes up to 3” OD will be supplied in bundles. In order to prevent rust during sea shipment, bundles of Nickel 201 Seamless Pipe may be wrapped with polypropylene sheets, and secured with flat steel bands. Over 3” OD will be supplied loose.
