Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | Pure Nickel Strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068 | Model Number: | Pure Nickel Strip |
|---|---|---|---|
| Ni (Min): | 99% | Standard: | ASTM ASME SUS JIS DIN |
| Ultimate Strength (≥ MPa): | 550 | Usage: | Battery Pack |
| Certification: | ISO9001 TUV | Shape: | Wire/Ribbon/Strip/Rod/Tube/Plate |
| Thickness: | 0.3-1200MM | Processing: | Hot/Cold Rolling |
| Surface: | Black/bright | Width: | 0-2500MM |
| Feature: | High Electric Conductivity And High Corrosion Resistance | Density: | 8.89g/cm3 |
| High Light: | Pure nickel strip 2.4068,ASTM B162 UNS N02201,DIN 2.4068 |
||
Product Description

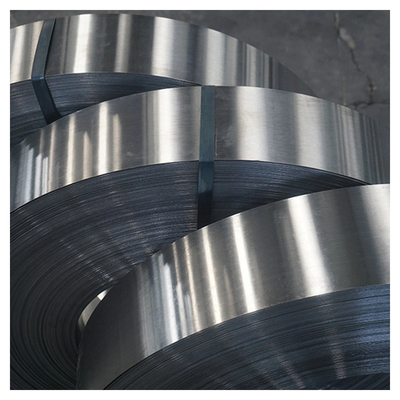

Pure nickel strip N6 N4 Ni200 Ni201 ASTM B162 UNS N02201 DIN 2.4068
pure nickel strip Main Properties:
Our range of pure nickel strips offer:
* One of the lowest electrical resistivity available
* Homogeneity microcleanliness, and close composition control, which enhances weldability
* Significantly low levels of surface oxides reduces die wear and provides excellent solderability
* Excellent formability: our range is easily machined into components.
Our range of pure nickel strips offer:
* One of the lowest electrical resistivity available
* Homogeneity microcleanliness, and close composition control, which enhances weldability
* Significantly low levels of surface oxides reduces die wear and provides excellent solderability
* Excellent formability: our range is easily machined into components.
|
Grade
|
Ni+Co
|
Cu
|
Si
|
Mn
|
C
|
Mg
|
S
|
P
|
Fe
|
|
N4
|
99.8
|
0.015
|
0.03
|
0.002
|
0.01
|
0.01
|
0.001
|
0.001
|
0.04
|
|
N6
|
99.6
|
0.10
|
0.10
|
0.05
|
0.10
|
0.10
|
0.005
|
0.002
|
0.10
|
|
Ni201
|
≥99.0
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.02
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Ni200
|
≥99.2
|
≤0.25
|
≤0.35
|
≤0.35
|
≤0.15
|
/
|
≤0.01
|
/
|
≤0.40
|
|
Physical Data
|
|
|
Density
|
8.89g/cm3
|
|
Specific Heat
|
0.109(456 J/kg.ºC)
|
|
Electrical Resistivity
|
0.096×10-6ohm.m
|
|
Melting Point
|
1435-1446ºC
|
|
Thermal Conductivity
|
70.2 W/m-K
|
|
Mean Coeff Thermal Expansion
|
13.3×10-6m/m.ºC
|
|
|
|
|
Typical Mechanical Properties
|
|
|
Mechanical Properties
|
Nickel 200
|
|
Tensile Strength
|
462 Mpa
|
|
Yield Strength
|
148 Mpa
|
|
Elongation
|
47%
|
|
Material
|
18650/21700/26650/32650 nickel strip
|
|||
|
Dimension
|
1P to 9P
|
|||
|
Available Space
|
18.5mm,19mm, 19.5mm, 20.2mm
|
|||
|
Usage
|
Use for 18650
|
|||
|
Package
|
Nickel strip in roll pack into carton
|
|||
|
Physical properties
|
High temperature resistant, corrosion resistance,
|
|||
|
Technical support
|
With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can
open mold independently. |
|||
|
Functions
|
Products are widely used in energy storage, new energy vehicles, solar street lights, power tools and
other energy products |
|||
|
Advantage
|
All materials are degreased and adopt the dry -punching technology to ensure that the product is clean
|
|||
Want to Know more details about this product
