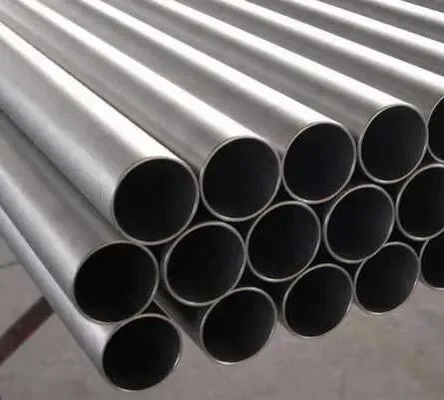

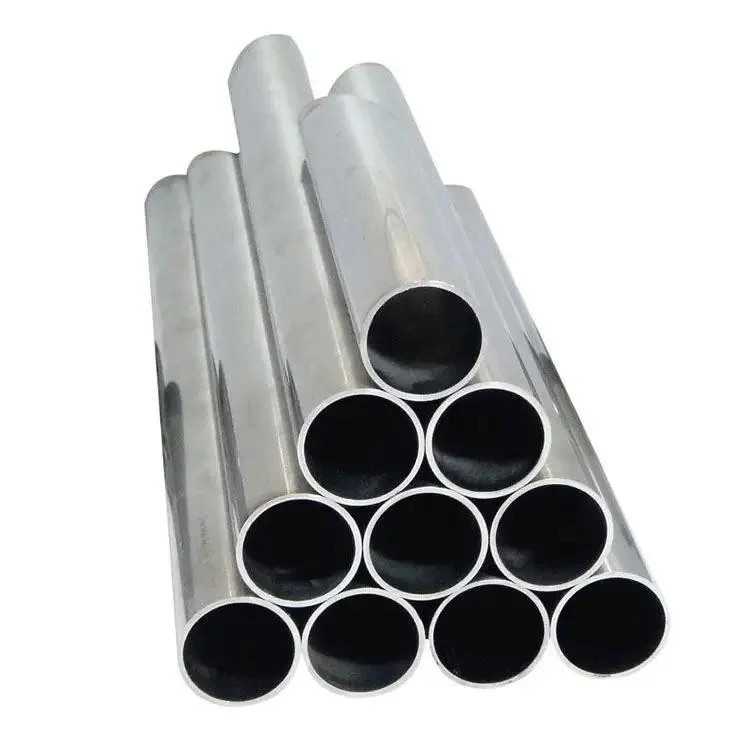

ASTM B161 Nickel Base Alloy UNS N02200 Ni200 UNS N02201 Ni201 Nickel Alloy Pipe Tube
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | China Manufacturer's ASTM B161 Nickel Base Alloy UNS N02200/Ni200 And UNS N02201/Ni201 Nickel Alloy Pipe And Tube | Application: | Used In Chemical, Oil, Marine Industry |
|---|---|---|---|
| Ni (Min): | 99% | Standard: | ANSI/JIS/GB |
| Brand Name: | TISCO JISCO BAOSTEEL ZPSS LISCO | Thickness: | 0.1-120mm |
| Processing: | Hot/Cold Rolling | Surface: | 2B, 2D, 4B, BA, HL, MIRROR, Brush, NO. 1-NO. 4, 8K, Etc. |
| Material: | Pure Ni 200 Ni201 | ||
| High Light: | Ni201 Nickel Alloy Pipe Tube,ASTM B161 Nickel Base Alloy,Nickel UNS N02200 |
||
Product Description
Factory supply Nickel high purity UNS N02200 N02201seamless tube with low price
|
Material
|
Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
|
|
Shape
|
Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
|
|
Grade
|
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
|
|
Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
|
|
|
Alloy : Alloy 20/28/31;
|
|
|
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;
|
|
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 /
DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
|
Haynes: Haynes 230/556/188;
|
|
|
Inconel Series:
|
|
|
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20;
|
|
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
|
Incoloy: Incoloy 800/800H/800HT/825/925/926;
|
|
|
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
|
|
|
Monel: Monel 400/K500/R405
|
|
|
Nitronic: Nitronic 40/50/60;
|
|
|
Nimonic: Nimonic 75/80A/90/A263 ;
|
|
|
Specification
|
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Product
Characteristics |
1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
|
Standard
|
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
|
|
Inspection
|
ISO,SGS,BV and so on.
|
|
Application
|
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure
compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
|
Packaging
|
1. cases packed in wooden cases
2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
|
Delivery
|
Within 7-15 days
|
|
Payment
|
L/C, T/T (30% deposit)
|
What is Nickel 200 (UNS N02200)?
Designated as UNS N02200 and W.Nr. 2.4060 and 2.4066, Nickel 200 is a solid solution strengthened commercially pure wrought nickel. It has good mechanical properties and excellent resistance to a wide range of corrosive environments. Nickel 200 is primarily used in the food processing industry for its corrosion resistance. It can also be used in applications involving reducing chemicals, caustic soda, distilled and natural water, alkaline salt solutions, dry fluorine, and synthetic fibers. Depending on the specific product form, Nickel 200 may have different heat treatments and delivery conditions, resulting in different mechanical properties (tensile strength, yield strength, elongation, reduction of area, hardness, etc.). What is Nickel 201 (UNS N02201)?
Designated as UNS N02201 or W.Nr. 2.4061 and 2.4068, Nickel 201 has a chemical composition that is nearly identical to Nickel 200, but with a lower carbon content. Nickel 201 is commonly found in alkali evaporators, burner boats, plating rods, and electronic components. Nickel 201 has a much lower base hardness and lower work hardening rate than Nickel 200, making it particularly suitable for spinning and cold forming. Nickel 201 is approved for use in the construction of pressure vessels operating up to 1250°F, per ASME Boiler and Pressure Vessel Code Section VIII-Division 1. Its mechanical properties also vary with the manufacturing process and heat treatment conditions.
