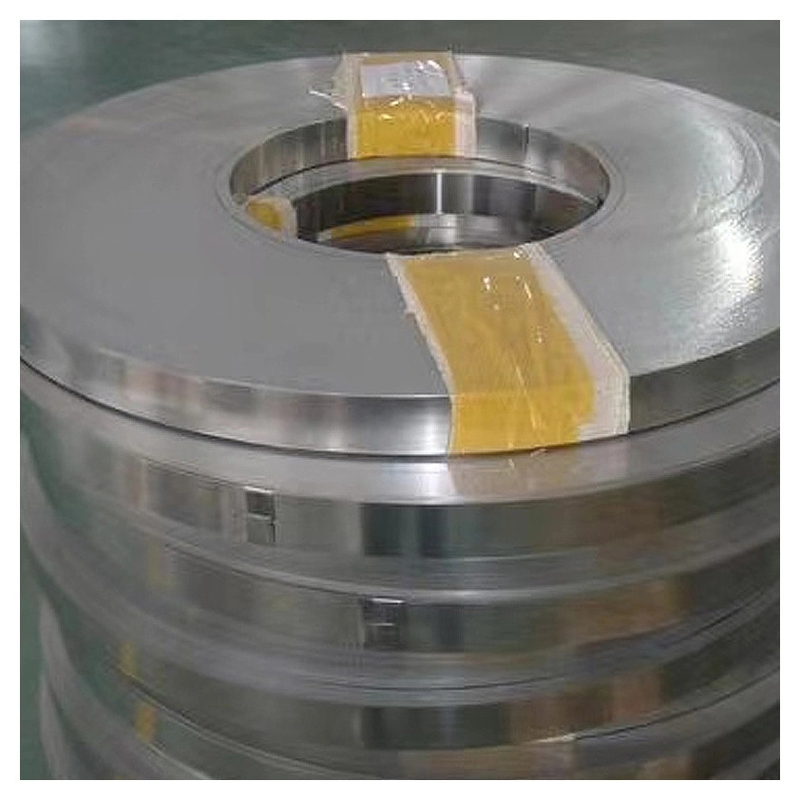

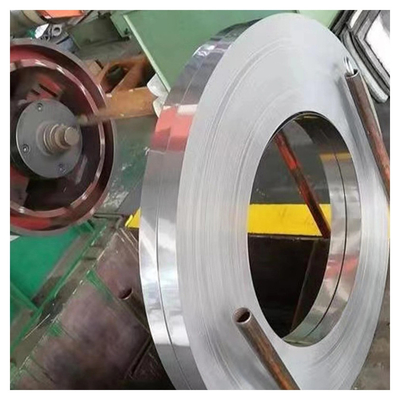

Nickel 201 Plate Sheet UNS N02201 Strips Coil UNS N02201 2.4068 Nickel Alloy Plate Foil
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | Nickel 201 Plate And Sheet UNS N02201 Strips Coil UNS N02201 2.4068 Nickel Alloy Plate Foil | Model Number: | Nickel Plate |
|---|---|---|---|
| Ni (Min): | 58% | Standard: | ASTM ASME SUS JIS DIN |
| Ultimate Strength (≥ MPa): | 550 | Usage: | Aerospace, Medical, Chemical |
| Certification: | ISO9001 TUV | Application: | Boiler, Container, Pipe, Ect. |
| Thickness: | 0.3-1200MM | Processing: | Hot/Cold Rolling |
| Surface: | Black/bright | Width: | 0-2500MM |
| High Light: | Nickel 201 Plate,Nickel 201 Sheet,UNS N02201 Strips |
||
Product Description
Nickel 201 Plate and Sheet UNS N02201 Strips Coil UNS N02201 2.4068 Nickel Alloy Plate Foil
We mainly produce the Carbon and Alloy Steel Plates&Coils, Nickel Alloy steel plates&coils, Stainless Steel Plates&Coils, and Duplex Steel Plates&Coils.
Here are the material grade of the Round Steel plates that we can supply for you.
Standard: ASTM B409, B463, B575, B127, B162, B688, B424, B443, B168
Hastelloy Alloy Chemical Composition
| Grade | UNS | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | Fe | Co≤ |
| B2 | N10665 | 0.02 | 1.0 | 0.04 | 0.03 | 0.10 | - | 1.0max | 26.0-30.0 | 2.0max | 1.0 |
| B3 | N10675 | 0.01 | 3.0 | 0.03 | 0.01 | 0.10 | 65.0min | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 3.0 |
| X | N06002 | 0.05-0.15 | 1.0 | 0.04 | 0.03 | 1.0 | - | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.5-2.5 |
| C22 | N06022 | 0.015 | 0.5 | 0.02 | 0.02 | 0.08 | - | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 2.5 |
| C2000 | N06200 | 0.01 | 0.5 | 0.025 | 0.01 | 0.08 | - | 22.0-24.0 | 15.0-17.0 | 3.0max | 2.0 |
| C276 | N10276 | 0.01 | 1.0 | 0.04 | 0.03 | 0.08 | - | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 2.5 |
Inconel Alloy Chemical Composition
| Grade | C≤ | Mn≤ | Si≤ | S≤ | Cu≤ | Fe | Ni | Cr |
| Inconel 600 | 0.15 | 1.0 | 0.5 | 0.015 | 0.5 | 6.0-10.0 | 72.0min | 14.0-17.0 |
| Inconel 601 | 0.10 | 1.0 | 0.5 | 0.015 | 1.0 | Bal | 58.0-63.0 | 21.0-25.0 |
| Inconel 625 | 0.10 | 0.50 | 0.5 | 0.015 | - | 5.0max | 58.0 min | 20.0-23.0 |
| Inconel 718 | 0.08 | 0.35 | 0.5 | 0.015 | 0.30 | - | 50.0-55.0 | 17.0-21.0 |
Incoloy Alloy Chemical Composition
| Grade | C≤ | Mn≤ | Si≤ | S≤ | Cu≤ | Fe(min) | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.1 | 1.5 | 1 | 0.015 | 0.75 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800H | 0.05-0.10 | 1.5 | 1 | 0.015 | 0.75 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.15-0.60 | 0.15-0.60 |
| Incoloy 800HT | 0.06-0.10 | 1.5 | 1 | 0.015 | 0.75 | 39.5 | 30.0-35.0 | 19.0-23.0 | 0.85-1.20 | 0.25-0.60 |
| Incoloy 825 | 0.05 | 1 | 0.5 | 0.03 | 1.5-3.0 | 22 | 38.0~46.0 | 19.5~23.5 | 0.2 | 0.6-1.2 |
| Incoloy 926 | 0.02 | 2 | 0.5 | 0.01 | 0.5-1.5 | bal | 24.0-26.0 | 19.0-21.0 | - | - |
Monel Alloy Chemical Composition
| Grade | C≤ | Mn≤ | Si | S≤ | Cu | Fe≤ | Ni |
| Monel 400 | 0.3 | 2 | 0.5 | 0.024 | 28.0-34.0 | 2.5 | 63 |
| Monel k500 | 0.25 | 1.5 | 0.5 | 0.01 | 27.0-33.0 | 0.5-2 | 63 |
Nickel 200, 201 Chemical Composition
| Grade | C≤ | Mn≤ | Si | S≤ | Cu | Fe≤ | Ni(min) |
| Ni200 | 0.15 | 0.35 | 0.35 | 0.01 | 0.25 | 0.40 | 99.0 |
| Ni201 | 0.02 | 0.35 | 0.35 | 0.01 | 0.25 | 0.40 | 99.0 |
Alloy 20, 31 Chemical Composition
| Grade | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | Cu | N |
| Alloy 20 | 0.07 | 2 | 0.045 | 0.035 | 1 | 32.0-38.0 | 19.0-21.0 | 2.0-3.0 | 3.0-4.0 | 0 |
| Alloy 31 | 0.015 | 2 | 0.025 | 0.01 | 0.3 | 30.0-32.0 | 26.0-28.0 | 6.0-7.0 | 1.0-1.4 | 0.15-0.25 |
