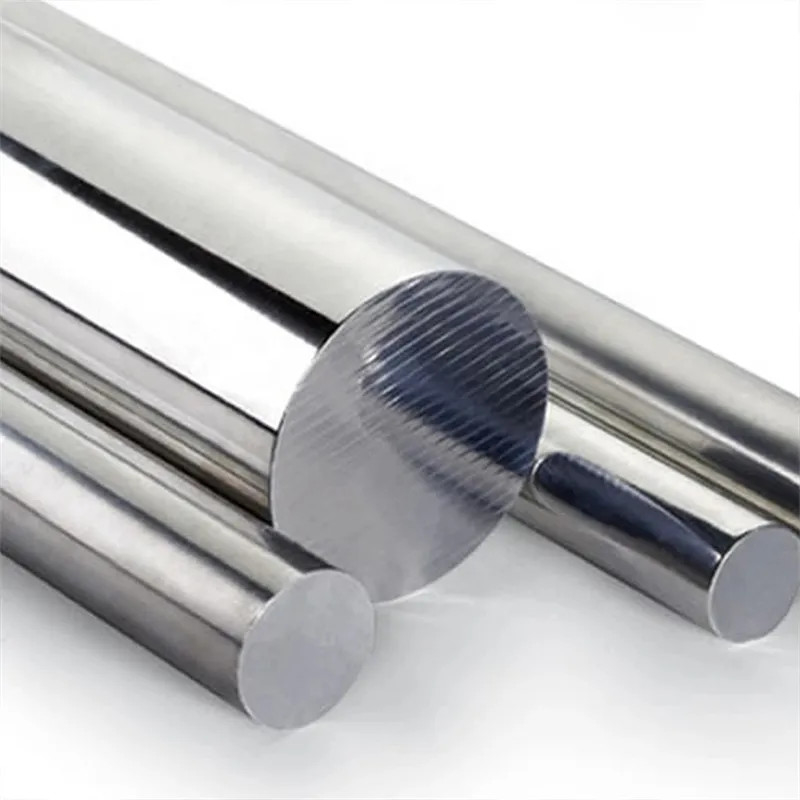

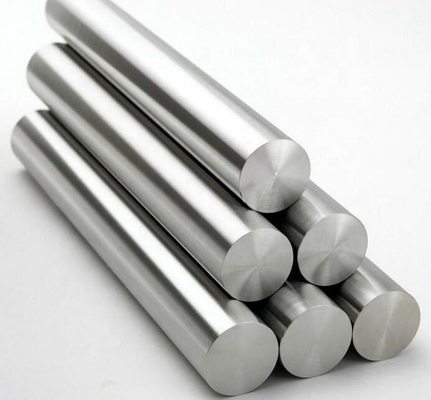

Heat Treatment Monel K500 B865 UNS N05500 Hot Rolled Forged Alloy Steel Round Bar
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | Wholesale Monel K500 UNS N05500 Hot Rolled Forged Alloy Steel Round Bar For Building Materials | Grade: | Nickel |
|---|---|---|---|
| Model Number: | N05500 | SIZE: | Customized Size |
| Certificate: | ISO9001 | Processing Service: | Welding, Punching, Cutting, Bending |
| Material: | Nickel-based Alloy | ||
| High Light: | monel k500 heat treatment,b865 uns n05500,Forged Alloy Steel Round Bar |
||
Product Description
wholesale Monel k500 UNS N05500 Hot Rolled Forged Alloy Steel Round Bar for building materials
Super alloys contain many elements in different combinations so as to achieve a desired result. They have the ability to function at very high temperatures and under severe mechanical stress, and also where high surface stability is required. They have good creep and oxidation resistance. There are three groups of alloys, namely cobalt-based, nickel-based, and iron-based alloys.
Nickelvac K-500™ is an age-hardenable version of Monel 400 alloy. It has high strength and sea water corrosion resistance. The following datasheet gives more details about Nickelvac K-500™.
Physical Properties
The physical properties of Nickelvac K-500™ are outlined in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.45 g/cm³ | 0.305 lb/in³ |
| Melting point | 1338°C | 2440°F |
Mechanical Properties
The mechanical properties of Nickelvac K-500™ are given in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1000 MPa | 145000 psi |
| Yield strength (at strain 0.200%) | 655 MPa | 95000 psi |
| Elongation at break | 22% | 22% |
| Reduction of area | 40% | 40% |
| Hardness, Rockwell C | 27 | 27 |
The following table shows the chemical composition of Nickelvac K-500™.
| Element | Content (%) |
|---|---|
| Nickel, Ni | 66 |
| Copper, Cu | 29 |
| Aluminum, Al | 2.7 |
| Iron, Fe | 1 |
| Manganese, Mn | 0.7 |
| Tungsten, W | 0.6 |
| Silicon, Si | 0.25 |
| Carbon, C | 0.1 |
| Sulfur, S | 0.01 |
