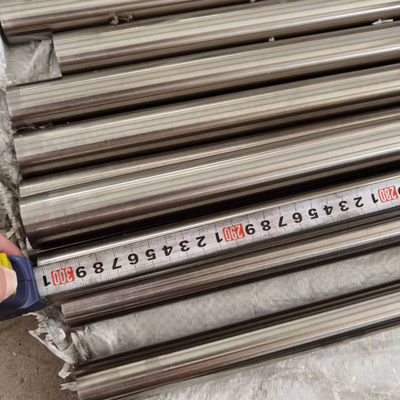

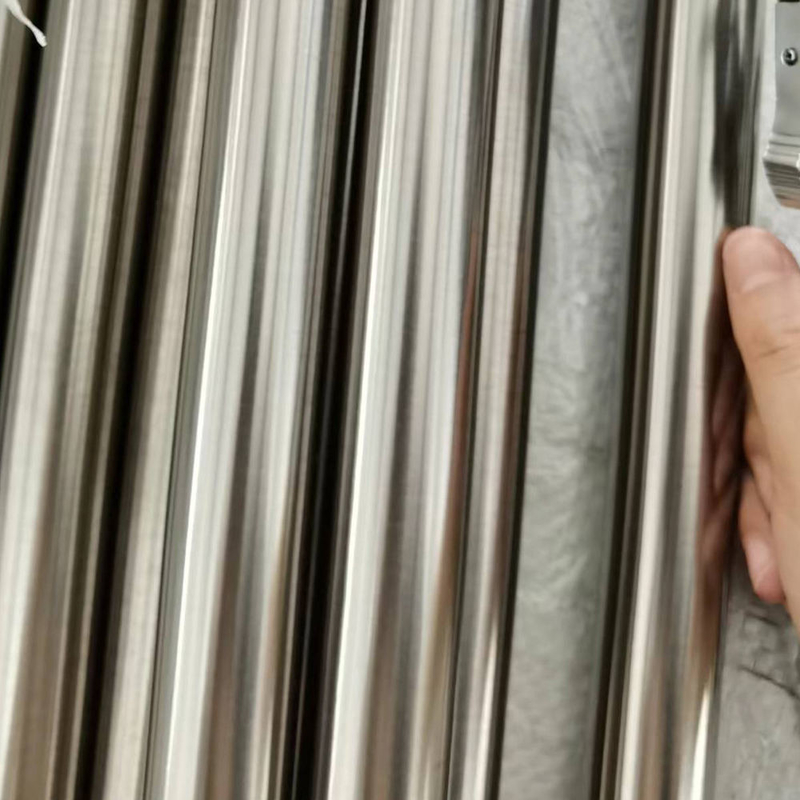

Nickel Copper Alloy MONEL 400 Rod Bar UNS N04400 2.4360 2.4361 Marine Chemical
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | Not limited |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | Reliable Factory Direct Supply High Quality Nickel Based Alloy Round ROD / Bar UNS N05500 ALLOY K500 | Grade: | MONEL 400 UNS N04400/W.Nr. 2.4360 2.4361 |
|---|---|---|---|
| Ni (Min): | 63 | Model Number: | N05500 |
| SIZE: | Customized Size | Density: | 8.8 G/cm3 |
| Condition: | Annealed, Hot Finished, Cold-Drawn, Stress-Relieved | Application: | Marine And Chemical Processing |
| High Light: | nickel-copper alloy 400,monel 400 Bar,monel 400 rod |
||
Product Description
Nickel-Copper Alloy MONEL Alloy 400 Rod and Bar UNS N04400/W.Nr. 2.4360and 2.4361 for Marine and Chemical Processing
|
Type
|
Nickel Alloy Bar/Rod
|
|
Diameter
|
3-800mm
|
|
Length
|
3000mm, 5800mm, 6000mm,etc
|
|
Standard
|
ASTM,AISI,JIS,DIN,EN
|
|
Certification
|
ISO,SGS,TUV
|
|
Technique
|
Cold Drawn/Hot Rolled
|
|
Quality
|
Mill Test Certificate supplied with the shipment ,third part inspection is acceptable
|
|
Grade |
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc
|
|
Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC
|
|
|
Incoloy: Incoloy 800/800H/800HT/825/925/926;etc
|
|
|
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc
|
|
|
Monel: Monel 400/K500/R405,etc
|
|
|
Nitronic 40/50/60/75/80A/90/A263 ;etc
|
|
|
Specification
|
Wire: 0.01-10mm /Strip: 0.05*5.0-5.0*250mm /Bar: φ3-800mm;Length 2000-5000mm /Pipe: φ3-500mm;δ1-30mm;Length 1000-8000mm /Sheet: δ
0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Cutting Type
|
Laser cutting;water-jet cutting;flame cutting
|
Monel K500 is a precipitation-hardenable nickel-copper alloy that combines the excellent corrosion resistance characteristic of Monel 400 with the added advantage of greater strength and hardness. These amplified properties, strength and hardness, are obtained by adding aluminum and titanium to the nickel-copper base and by a thermal processing used to effect precipitation, typically called age hardening or aging.
When in the age-hardened condition, Monel K-500 has a greater tendency toward stress-corrosion cracking in some environments than Monel 400. Alloy K-500 has approximately three times the yield strength and double the tensile strength when compared with alloy 400. Plus, it can be further strengthened by cold working prior to precipitation hardening. The strength of this nickel steel alloy is maintained to 1200° F but stays ductile and tough down to temperatures of 400° F. Its melting range is 2400-2460° F.
This nickel alloy is spark resistant and non-magnetic to -200° F. However, it is possible to develop a magnetic layer on the surface of the material during processing. Aluminum and copper may be selectively oxidized during heating, leaving a magnetic nickel rich film on the outside. Pickling or bright dipping in acid can remove this magnetic film and restore the non-magnetic properties.
In what forms is Monel K500 Available at Mega Mex?
Bar
Rod
Corrosion Resistant Monel K-500
The corrosion resistance of alloy K-500 is substantially equivalent to that of alloy 400 except that when in the age-hardened condition, nickel alloy K-500 has a greater tendency toward stress-corrosion cracking in some environments. Monel K-500 has been found to be resistant to a sour-gas environment. The combination of very low corrosion rates in high-velocity sear water and high strength make alloy K-500 particularly suitable for shafts of centrifugal pumps in marine service. In stagnant or slow-moving sea water, fouling may occur followed by pitting but this pitting slows down after a fairly rapid initial attack.
What are the characteristics of Monel K500?
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to non-oxidizing mineral acids, salts and alkalis.
Excellent resistance to high velocity sea water
Resistant to a sour-gas environment
Excellent mechanical properties from sub-zero temperatures up to about 480C
Non-magnetic alloy
