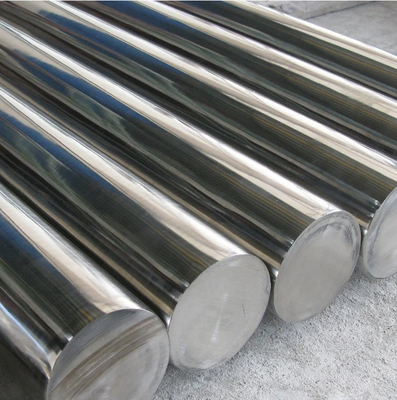

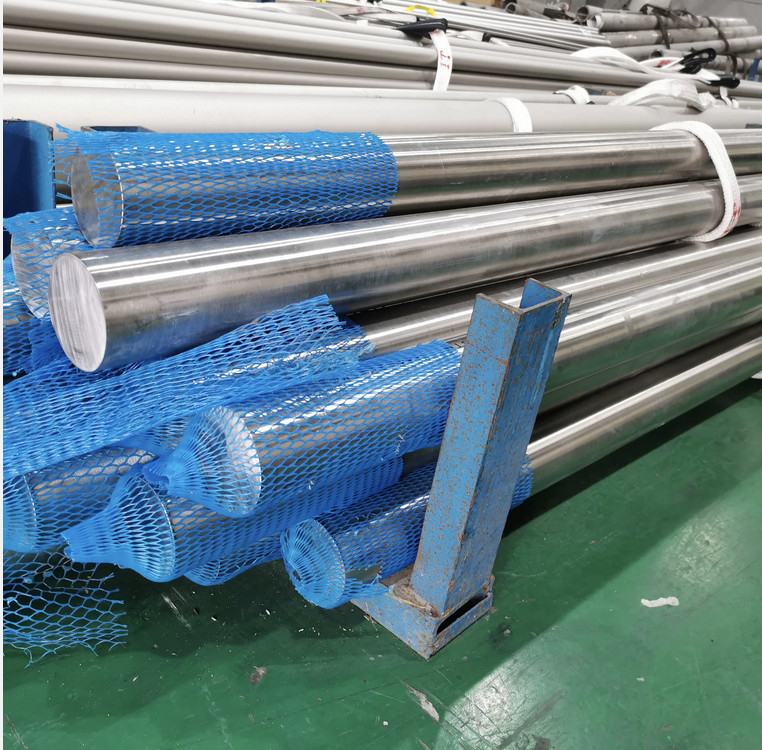

UNS N08020 Nickel Alloy 20 2.4660 20Cb3 Carpenter 20 20Cb-3 Nickel Alloy Bar/Rod
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ZHEMU |
| Certification: | ISO |
| Model Number: | Standard and Customization |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5KG |
|---|---|
| Price: | As Per Quotation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 25-35 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000kg per Week |
|
Detail Information |
|||
| Name: | UNS N08020 Nickel Alloy 20 | Application: | Chemical Process Industry |
|---|---|---|---|
| Ni(min): | 44% | Material: | Nickel Alloy |
| Surface: | Bright Surface | Model Number: | Alloy 20/UNS N08020 |
| Color: | Silver | ||
| High Light: | Nickel Alloy 20 20Cb3,UNS N08020 Nickel Alloy 20,ALLOY 20 2.4660 |
||
Product Description
Nickel alloy 20 is a low-carbon, niobium-stabilized austenitic nickel/iron/chromium alloy with additions of molybdenum and copper. It exhibits exceptional corrosion resistance in chemical environments containing phosphoric acid, nitric acid, chlorides and sulfuric acid. It also has good mechanical properties at both ambient and elevated temperatures.
The following sections will discuss in detail about nickel alloy 20.
Chemical Composition
The chemical composition nickel alloy 20 is outlined in the following table.
| Element | Content (%) |
|---|---|
| Iron, Fe | 35 |
| Nickel, Ni | 32-38 |
| Chromium, Cr | 19-21 |
| Copper, Cu | 3-4 |
| Manganese, Mn | ≤2 |
| Molybdenum, Mo | 2-3 |
| Niobium, Nb | ≤1 |
| Silicon, Si | ≤1 |
| Carbon, C | ≤0.07 |
| Phosphorous, P | ≤0.045 |
| Sulfur, S | ≤0.035 |
Physical Properties
The following table shows the physical properties of nickel alloy 20.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.05 g/cm3 | 0.291 lb/in3 |
Mechanical Properties
The mechanical properties of nickel alloy 20 are displayed in the following table.
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength (annealed) | 620 MPa | 89900 psi |
| Yield strength (annealed) | 300 MPa | 43500 psi |
| Elongation at break (annealed) | 41% | 41% |
Thermal Properties
The thermal properties of nickel alloy 20 are given in the following table
| Properties | Metric | Imperial |
|---|---|---|
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 14.7 µm/m°C | 8.17 µin/in°F |
| Thermal conductivity | 12.3 W/mK | 85.4 BTU.in/hrft².°F |
Designations
Other designations that are equivalent to nickel alloy 20 include the following:
- ASME SB-462 - SB-464
- ASME SB-468
- ASTM B 462 - B 464
- ASTM B 468
- ASTM B 472 - B 474
- ASTM B 751
Applications
The following are the list of applications of nickel 205 alloy:
- Production of plastics and synthetic fibers
- Chemical and petroleum processing equipment
- Mixing tanks
- Heat exchangers
- Process piping
